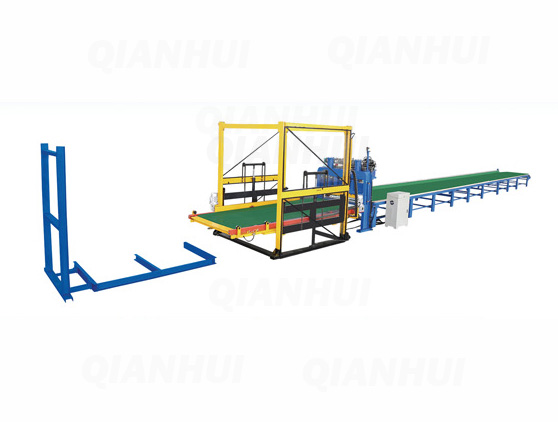

4x8ft Plywood Veneer Assembly Machine With 30m Conveyor and Cold Press Machine Function

产品详情

Technical Specification:
Model No.	BP1400 (4x8ft)
Assemble Size	1300x2600mm
Assemble Thickness	≤300mm
Worktable Length	30 meters
Cutting Method	Hydraulic Press Cutting
Feeding Speed	Speed Adjustable
Motor Power	11 kw
Dimension	40000x1800x2000 mm
Weight	4000kg

Model No.	BP1100 (3x6ft)
Assemble Size	1100x2100mm
Assemble Thickness	≤300mm
Worktable Length	30 meters
Cutting Method	Hydraulic Press Cutting
Feeding Speed	Speed Adjustable
Motor Power	7.4 kw
Dimension	38000x1500x2000mm
Weight	3500kg

Key Features: 1. Suitable for Assembly of Plywood Size 4x8ft and 3x6ft 2.Conveyor Length 30 meters or any other length you need,customized 3.Conveyor Speed adjustable according to your workers assemble speed 4.Automatic Sizing 1300x2600mm for 4x8ft,and 1100x2100mm for 3x6ft 5.Automatic Cutting at the Right Size 6.Automatic Stacking After Cutting 7.About 7 workers are required for a 30m conveyor 8.About 1000 sheets of plywood can be assembled within a shift 8 hours
