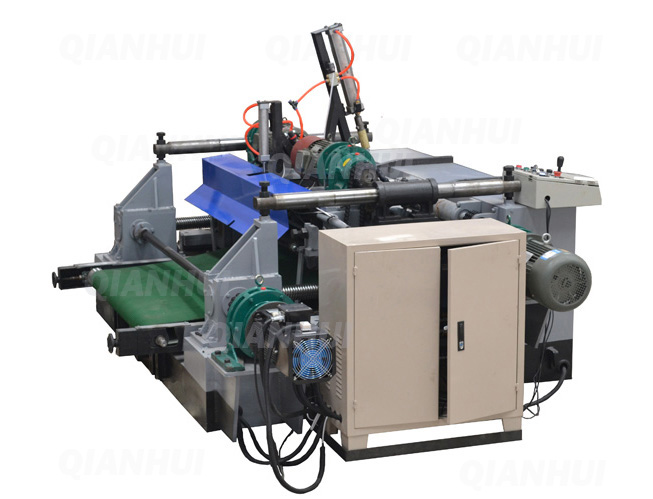

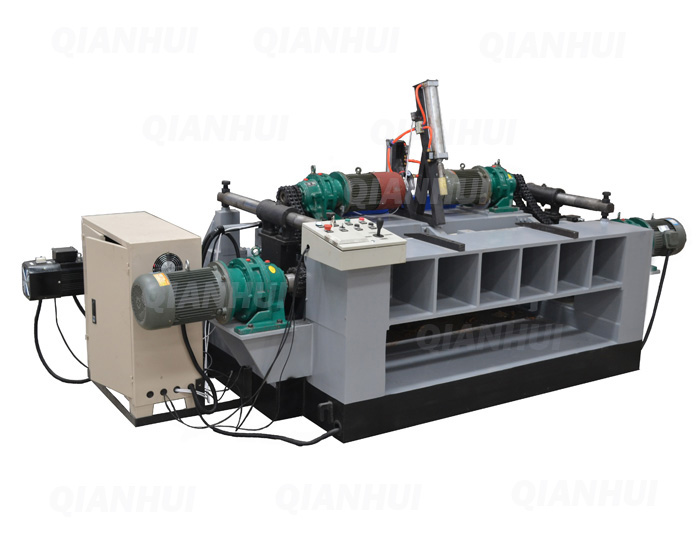

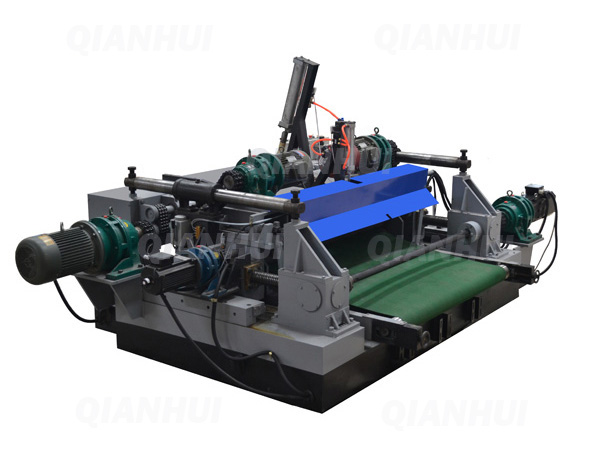

Wood Veneer Rotary Lathe With Clipper 2 in 1 Machine Heavy Duty

Max Peeling Lathe

 1300 mm

Max Peeling Diameter

 360 mm

Left Log Diameter

 26 mm

Peeling Thickness

0.4-2.6mm

Thickness Error

±0.05 mm

Peeling Speed

45m/min

Knife Size

1400x180x16 mm

Roller Diameter

102 mm

Roller Motors

5.5kw x 4 sets

Feed Motor

7.5kw motor x 1 set

Control System

Inverter+PLC

Dimension

3500x1900x1350 mm

Weight

5500 kg

Key Features:

1. 2 in One:Two functions veneer peeling and veneer clipping combined in one machine,so no need to buy another veneer clipping machine

2.Save Labor Cost: As the veneer will be directly cutted after peeling ,so no need one worker between clipping machine and peeling machine ,

3.Make Full Use of Wood Log: This machine can keep the last piece of veneer full size,lets say,you are peeling and cutting veneer 1270x640,it can make the last piece right size 640 width ,so you can will make more profit .

4. Servo System:This veneer lathe is equipped with 7.5kw Servo motor and 11kw Servo Drive Inverter,the control precision is much better than normal motor and normal inverters

5. Heavy Duty: The weight of this veneer lathe is 5300kg,much heavier than other model of machines,so the machines runs very stable,and the peeling precision will be very good,and this makes it suitable for peeling all kinds of hardwood logs

6. Slide pressing  bar: There are two slide pressing bars on top of the machine,to press the knife and single roller table , so as to keep them more stable when the machine working,and to keep the high precision

7.High Rigidity Rollers:Rollers are quenched and chrome plated, rigidity is better and harder,service life longer .

8. Bearings Well Sealed :All bearings are attached with seals,which makes the bearings better lubricated and can be used for longer time .
